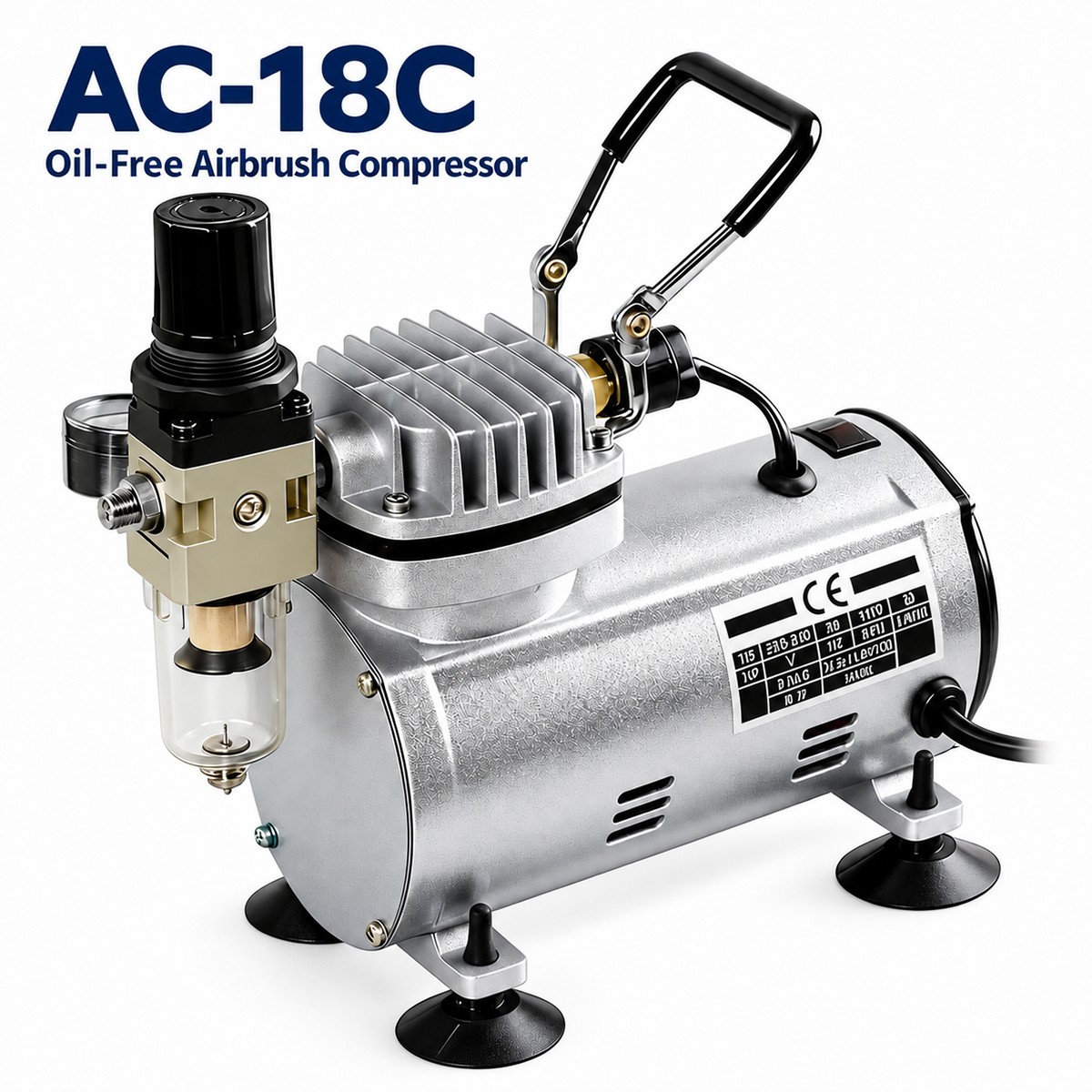

AC-18C Airbrush Compressor

Product Item : AC-18C
Category： Airbrush Compressors
Type: Oil-Free Piston Compressor
Power: 1/5 HP
Airflow: 20–23 L/min
Features: Pressure Regulator, Gauge & Moisture Trap
INQUIRY EMAIL

AC-18B Oil-Free Airbrush Compressor

The Linhaiveta AC-18B is a compact oil-free piston compressor for airbrush applications. It features a pressure regulator, pressure gauge and moisture trap for adjustable air delivery and convenient pressure monitoring.

Built with 100% copper motor windings, the AC-18B supports automatic start at 2.8 bar and automatic stop at 4 bar. OEM branding, housing color and packaging options are available for wholesale orders.

Specifications

Item	Specification
Model	AC-18B
Compressor Type	Oil-Free Piston
Motor Power	1/5 HP
Motor Windings	100% Copper
Airflow	20–23 L/min
Automatic Start Pressure	2.8 bar
Automatic Stop Pressure	4 bar
Pressure Adjustment	Pressure Regulator
Pressure Display	Pressure Gauge
Air Filtration	Moisture Trap
Air Outlet	1/8" BSP
Net Weight	3.4 kg
Power Cable Length	1.5 m

Features

● Oil-free piston design: No lubricating oil is required for the compression mechanism.

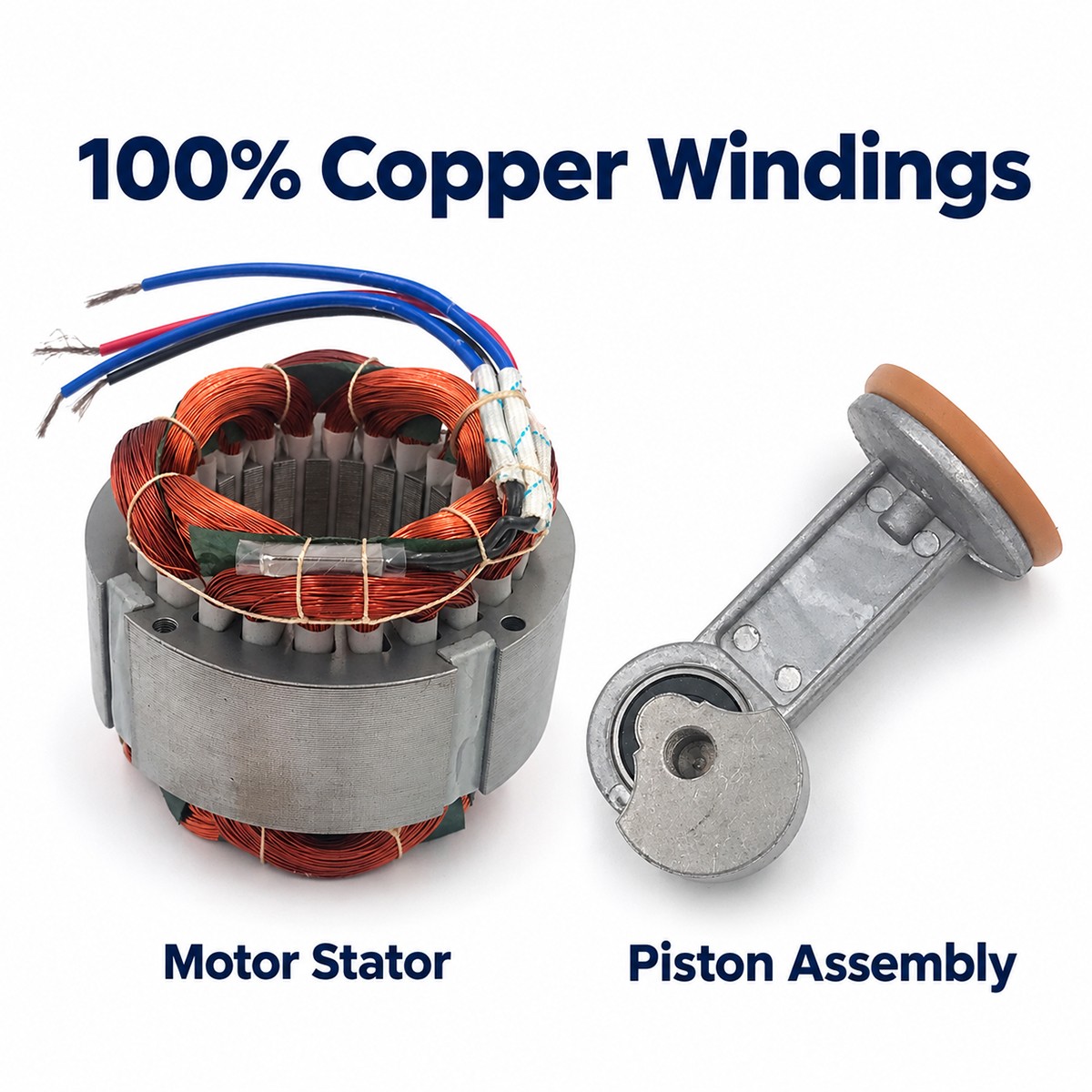

● 100% copper motor windings: Copper-wound motor construction.

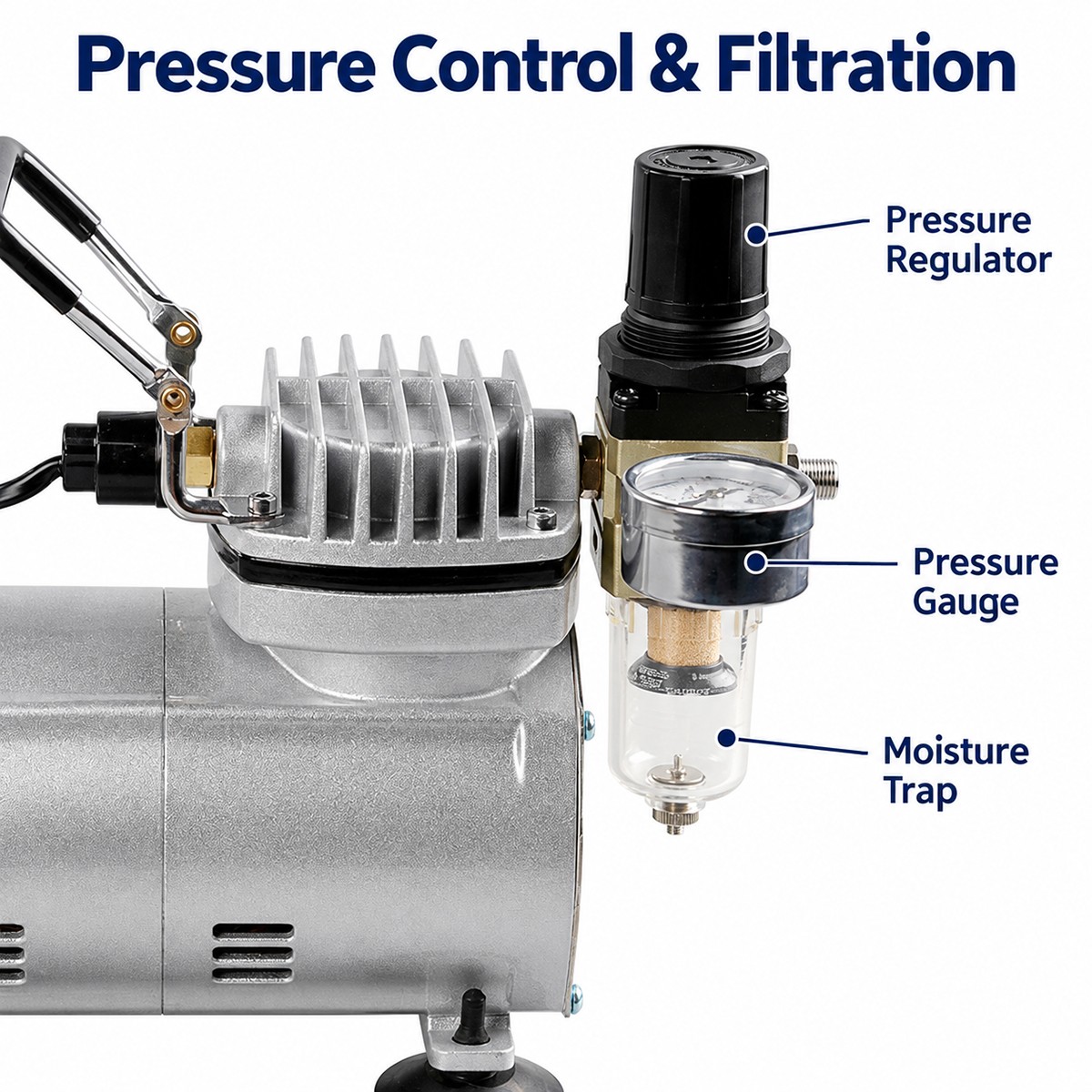

● Adjustable outlet pressure: A regulator allows pressure adjustment to suit the airbrush setup.
● Pressure monitoring: The fitted gauge displays regulated outlet pressure.
● Moisture separation: The moisture trap helps reduce condensed water in the air supply.
● Automatic operation: The motor restarts at 2.8 bar and stops at 4 bar.

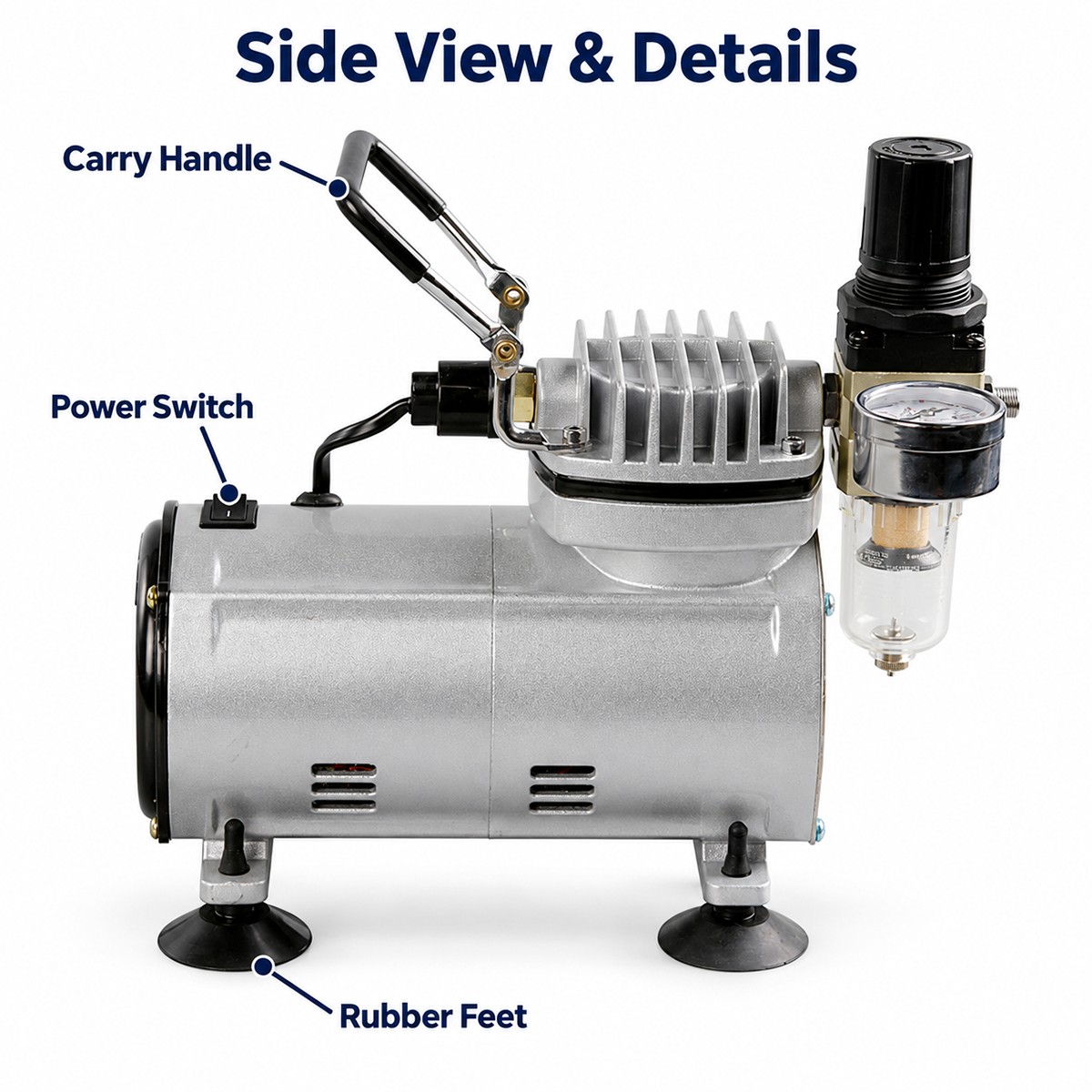

● Compact construction: A carrying handle and rubber feet support convenient placement and handling.

Voltage & Plug Options

Available electrical configurations include:

● 220–240 V / 50 Hz
● 110–120 V / 60 Hz
● 220 V / 60 Hz

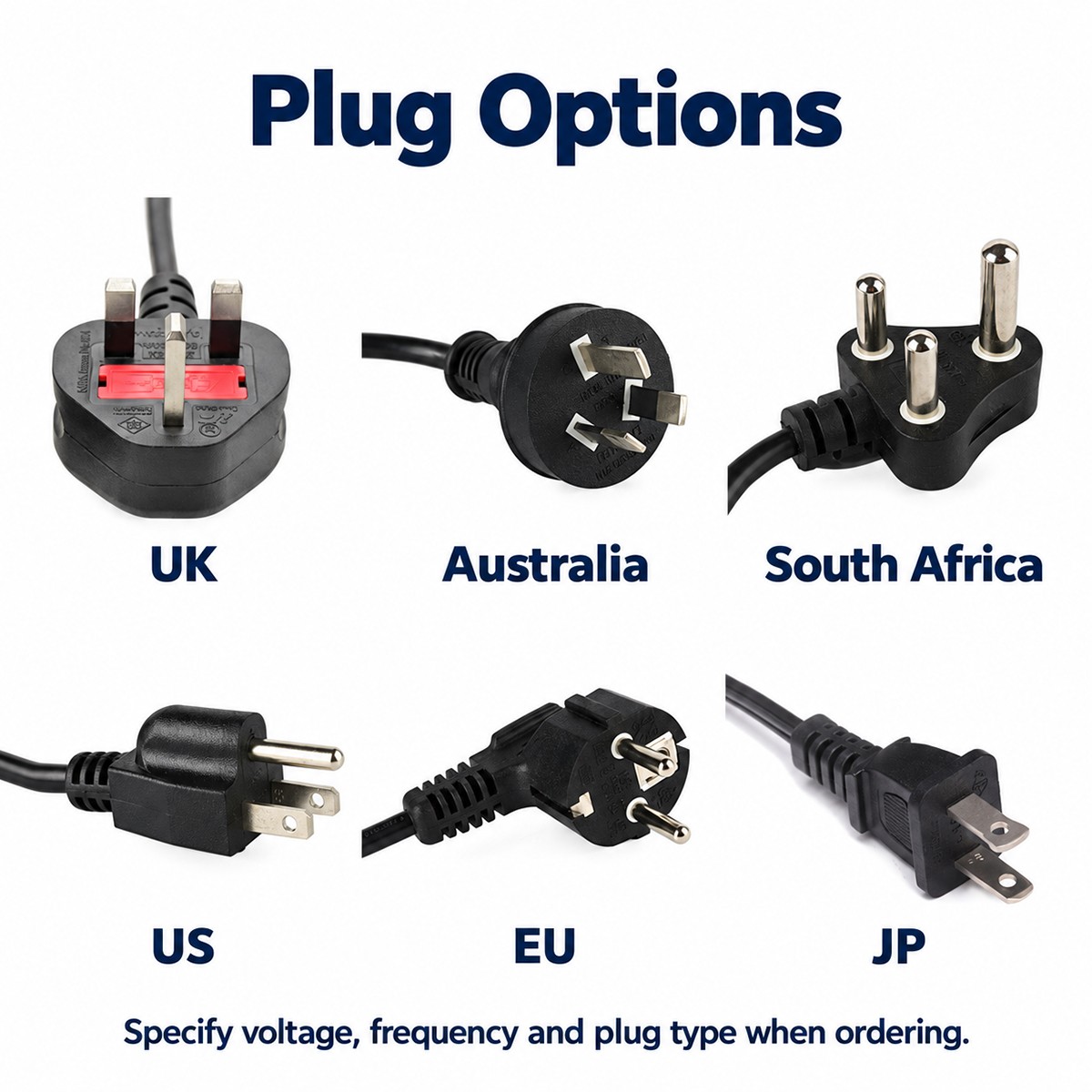

Plug options include UK, Australia, South Africa, US, EU and JP types.

Please specify the required voltage, frequency and plug type when ordering. Each unit is supplied for its specified electrical configuration.

Applications

Designed to supply compressed air for airbrush work such as:

● Model and miniature painting
● Hobby and craft projects
● Illustration and artwork

Airbrush compatibility depends on the required working pressure and air consumption. Contact us to confirm a suitable compressor and airbrush combination.
